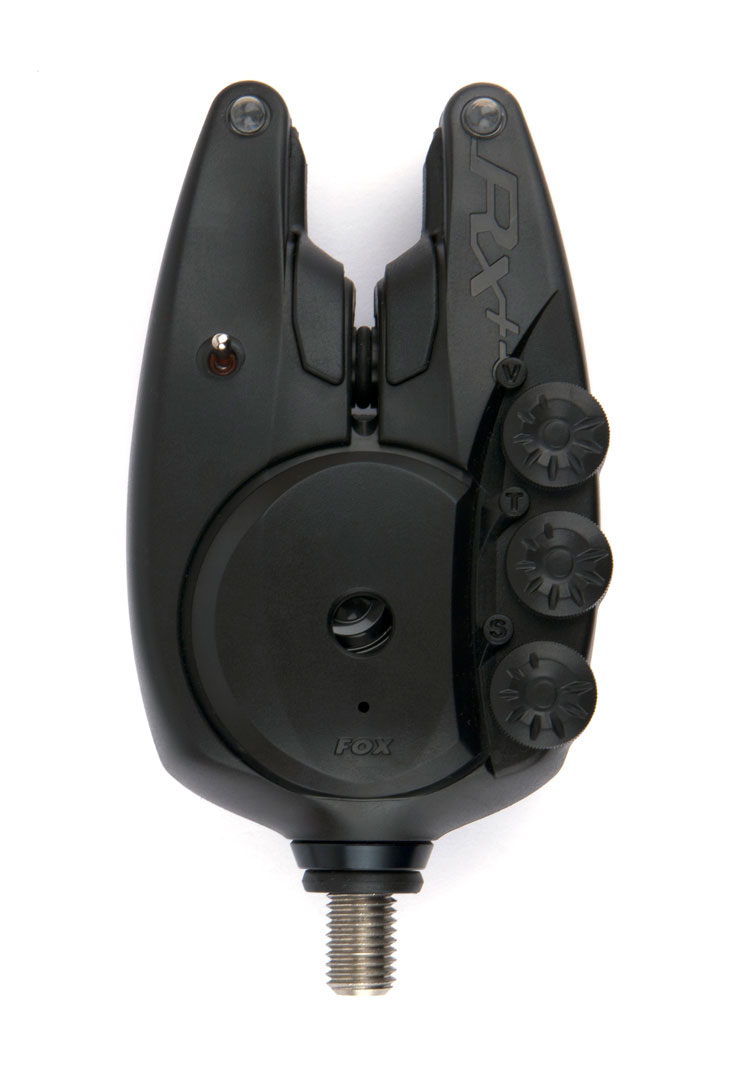

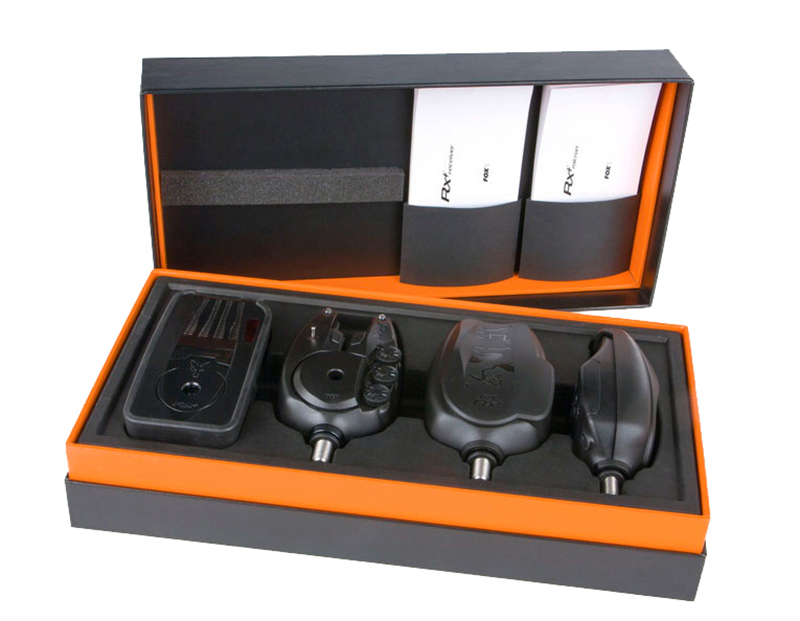

RX+® 3-Rod Presentation Set

• Weatherproof sealed case
• Digital circuitry
• D-Tec™ Plus Sensing System (DTSS)
• Low battery drain
• CNC machined Tru-Run™ roller wheel
• Twin multi-colour LEDs (Red, Green, Blue, Orange, Purple & White)

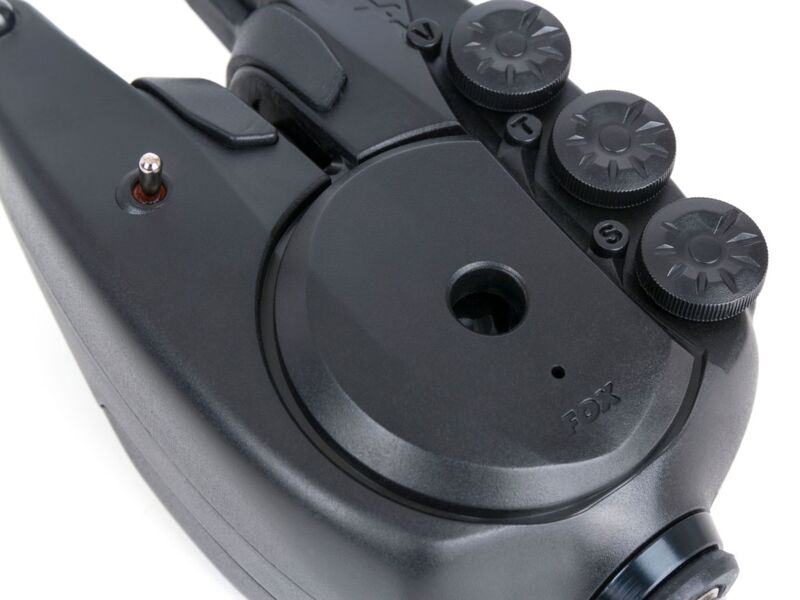

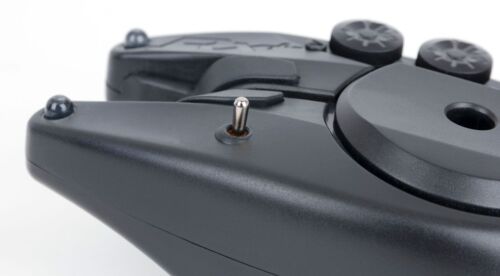

• On / Off toggle switch with 2 operational modes (day and night mode)

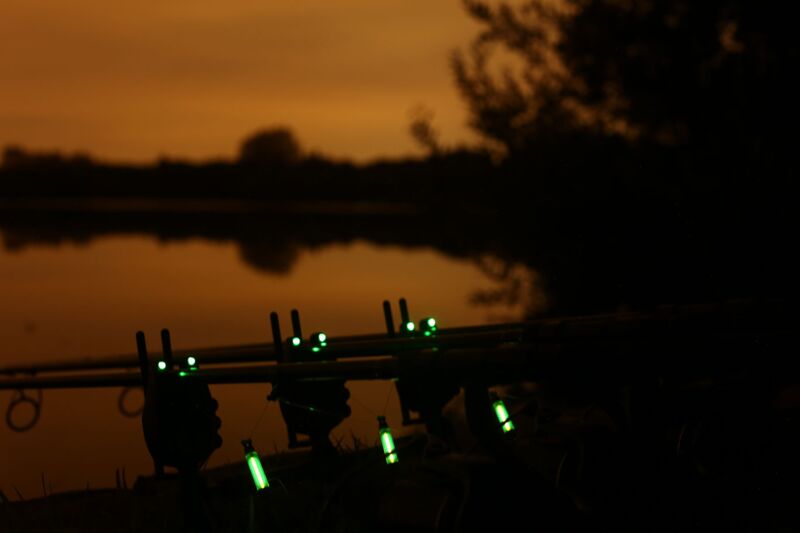

• When in night mode both LEDs will subtly glow in your chosen colour
• High quality cone speaker
• Rigid 3/8” stainless steel thread
• Rod-friendly rubber inlays

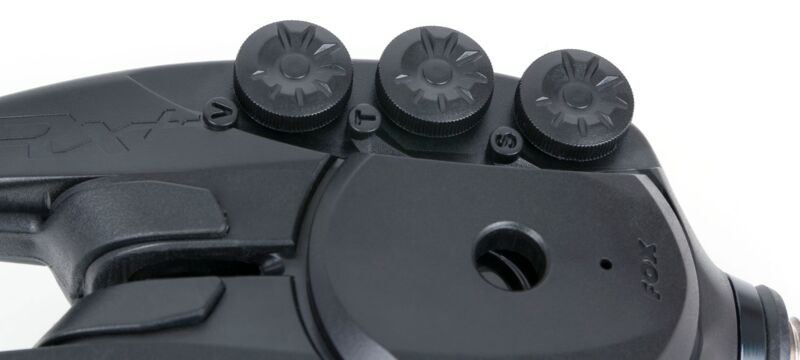

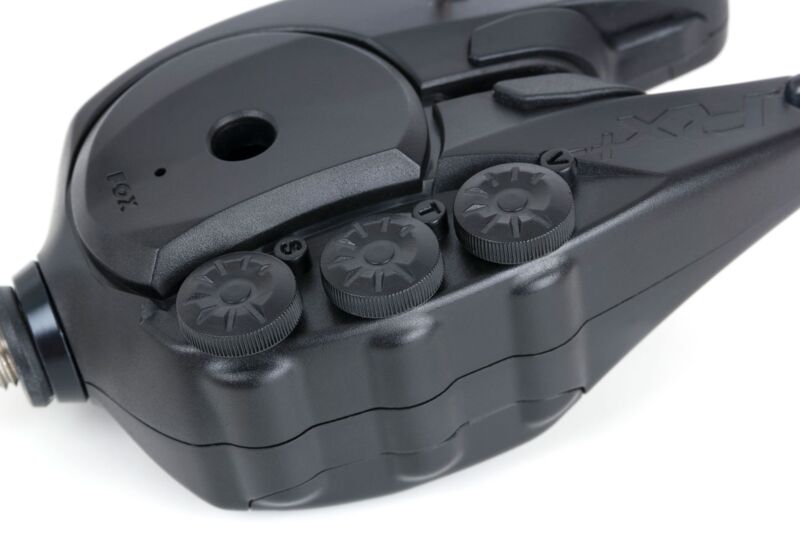

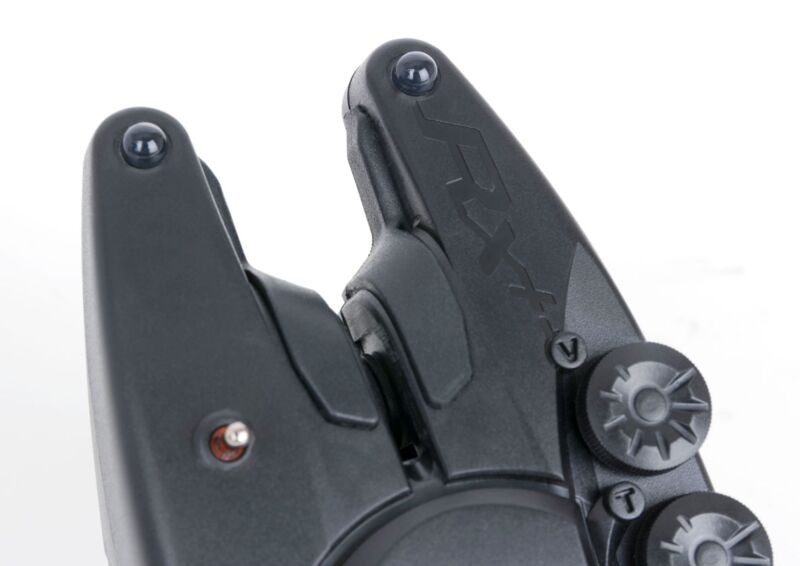

• Indexed ergonomic control for volume (8 different levels of volume with lowest setting being completely silent)
• Indexed ergonomic control for tone (8 different tone settings: turn dial clockwise to raise pitch and anti-clockwise to lower pitch)
• Indexed ergonomic control for Intelligent Sensitivity featuring See-Saw elimination (8 different sensitivity settings – see below Sensitivity table for comparison to NTX-R)
• Range test function allows user to check RX+ Receiver is picking up RX+ head at any given range
• Low battery warning (LED colour changes to cyan indicating it is time to replace batteries)

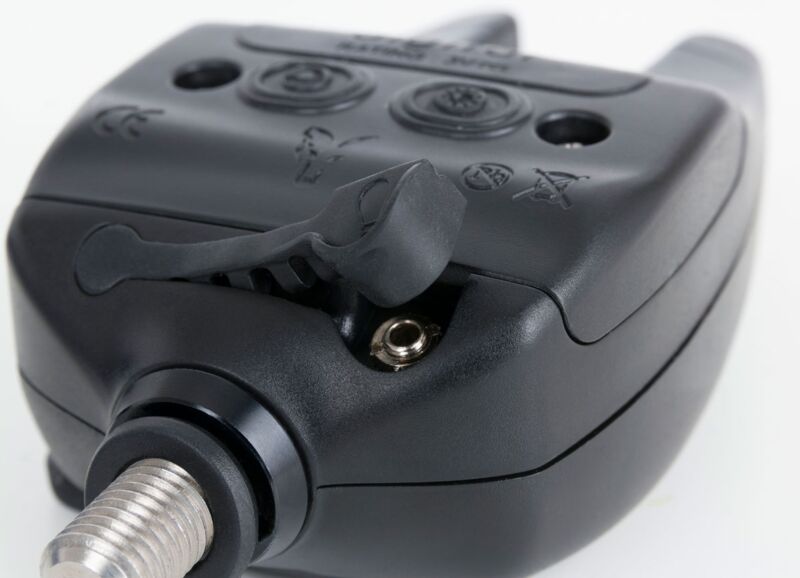

• Power Out Socket (2.5mm) for use with illuminated Swingers

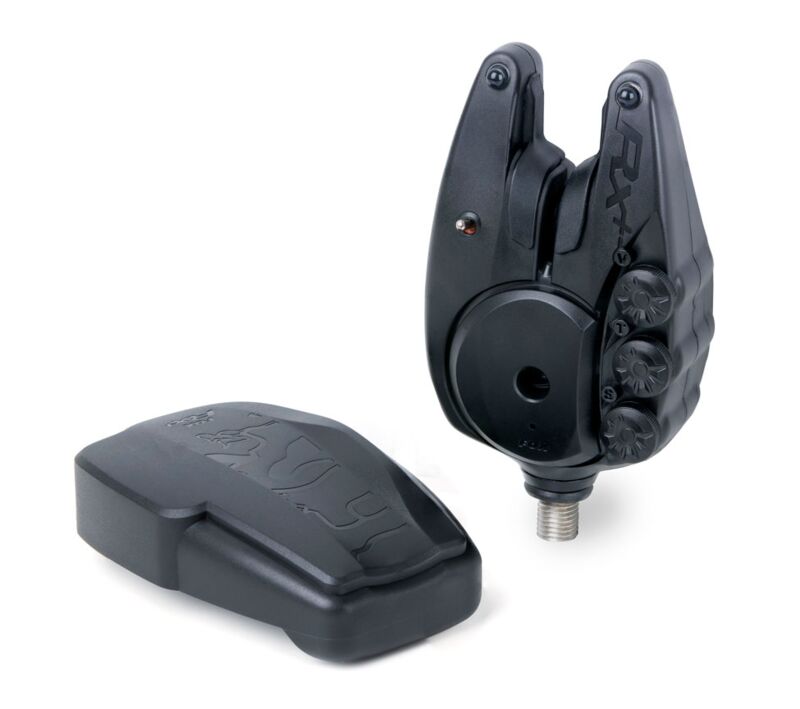

• Supplied with two compression washer options: rigid and soft with an additional spare soft washer per unit
• Requires 2 x AA batteries
• RX+ Single heads, RX+ Receiver, 2-rod and 4-rod presentation sets also available separately

Improved features compared to NTX-R

• Deeper ears with no increase in the height of the alarm

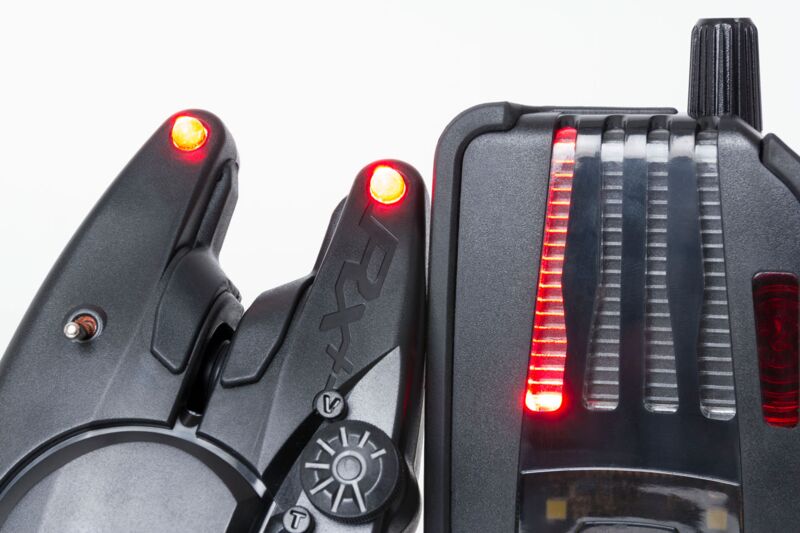

• Twin multi-colour LEDs, one per ear and at the very top of the ear

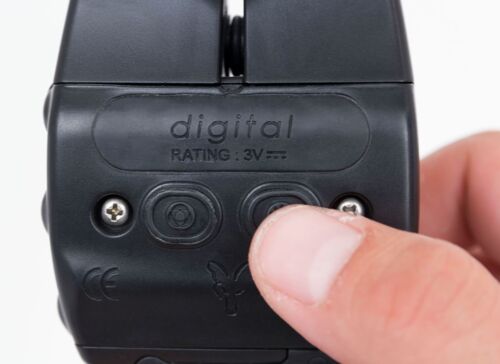

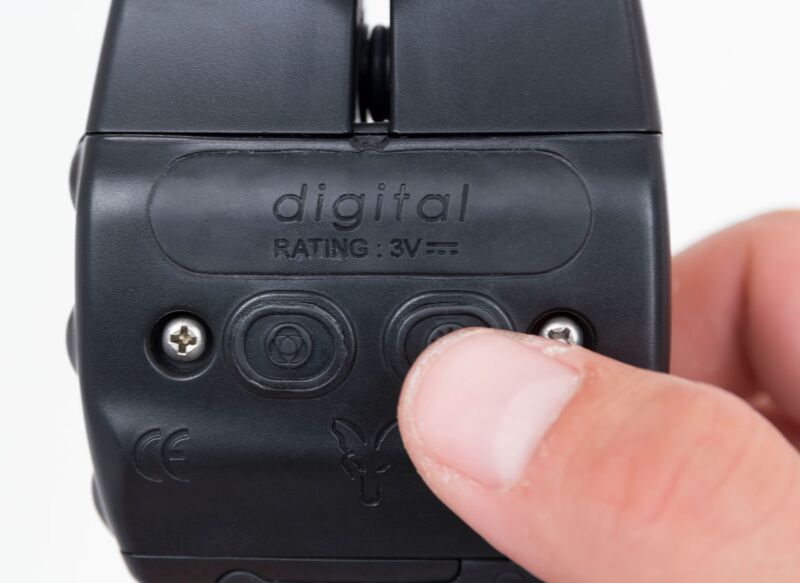

• External control of the multi-colour LEDs with Colour Sync™ function – simply change LED colour via button on the battery cover
• Manually selectable day and night modes
• External control of the Vari-Bright adjustable LED brightness to suit the conditions you are fishing in (choice of 3 LED brightness settings in day mode and 3 different brightness settings in night mode) simply adjust via button on battery cover
• Larger clearance around the roller wheel and improved drainage vastly reduces chances of roller wheel freezing up in extreme cold conditions
• Stronger range performance with RX+ Receiver
• Improved sensitivity range (see below)

Sensitivity Control

In all sensitivity settings (except maximum), the line must travel the specified distance in the same direction and within 2 seconds in order to trigger the unit. Any movement in the opposite direction will reset the distance counter to zero. This can substantially reduce, or eliminate false triggering caused by wind and water movement.

                                                Line Movement RX+                       Line Movement NTX-R

Setting 1 (Min)                     90mm                                                   74mm

Setting 2                              73mm                                                   56mm

Setting 3                              56mm                                                   48mm

Setting 4                              34mm                                                   40mm

Setting 5                              17mm                                                   32mm

Setting 6                              11mm                                                   24mm

Setting 7                              5.6mm                                                  16mm

Setting 8 (Max)                     2.8mm                                                  8mm

RX+ Receiver

Features

• Ultra-Long Range™
• Digital circuitry
• Low battery drain

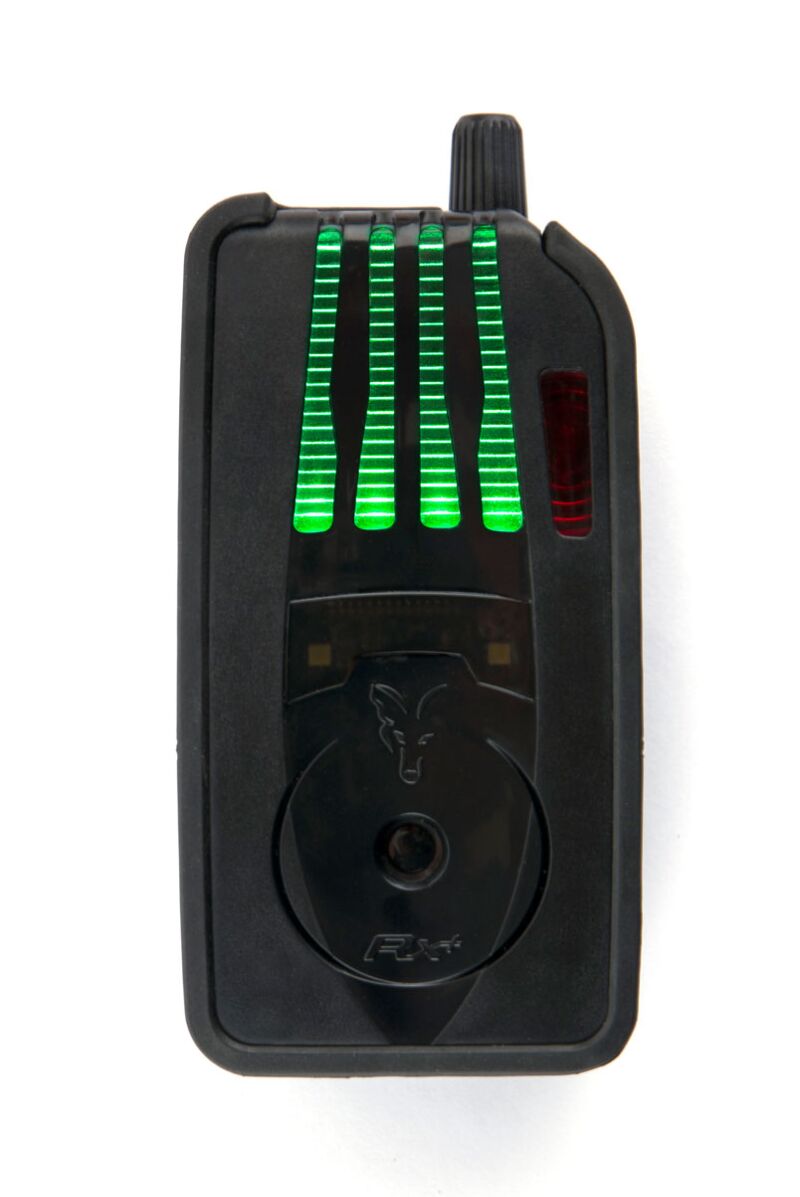

• Battery life indication when receiver is switched on (4 x green LEDs indicates full/close to full, 3 x green LEDs indicates the batteries are used, but do not need replacing, 2 x orange LEDs indicates the batteries are becoming low, 1 x red LED indicates batteries are low and need replacing)
• Low battery warning (LEDs will flash cyan periodically indicating the batteries need replacing)
• Alarm low battery warning (when RX+ head turns to low battery warning so will the receiver for that particular alarm, again changing colour to cyan)
• Vibration alert function (via switch on rear)
• Bivvy light function (via switch on rear, see below for more details)
• Anti-theft alarm
• Easy RX+ Micron registration (via switch at rear)
• Indicator LEDs with Colour Sync™
• On/Off & volume control
• High quality cone speaker
• Lanyard attachment point
• Requires 3 x AA batteries

Improved features over NTX-R Receiver

• Larger indicator LED windows, visible from both the front and the top of the receiver
• Optional bivvy light function when you receive a bite
• Free standing design for placing on bivvy table/bucket lid
• Soft grip casing
• Ability to sync up to eight RX+ Micron heads
• Stronger radio performance
• Silent ON mode, full receiver function but with no sound output

Bivvy Light function

When the bivvy light feature is turned on via the switch on the back of the receiver it will behave in the following ways:

• The indication lights on the receiver will be dimmed slightly to prevent the receiver emitting too much light whilst the bivvy light is active
• The bivvy light will only come on if three bite triggers are received in quick succession to prevent liners and false indication turning your bivvy light on unnecessarily
• The bivvy light will fade into full brightness and remain on whilst the alarm continues to send trigger signals to the receiver. The light will fade out to nothing in the 5 seconds after the trigger lights have gone out on the receiver as long as no more indications are received
